Mobile Hot Mix Plant
MOBILE HOT MIX PLANT
MOBILE HOT MIX PLANT
MOBILE HOT MIX PLANT
Mobile Hot Mix Plant

Mobile Hot Mix Plant

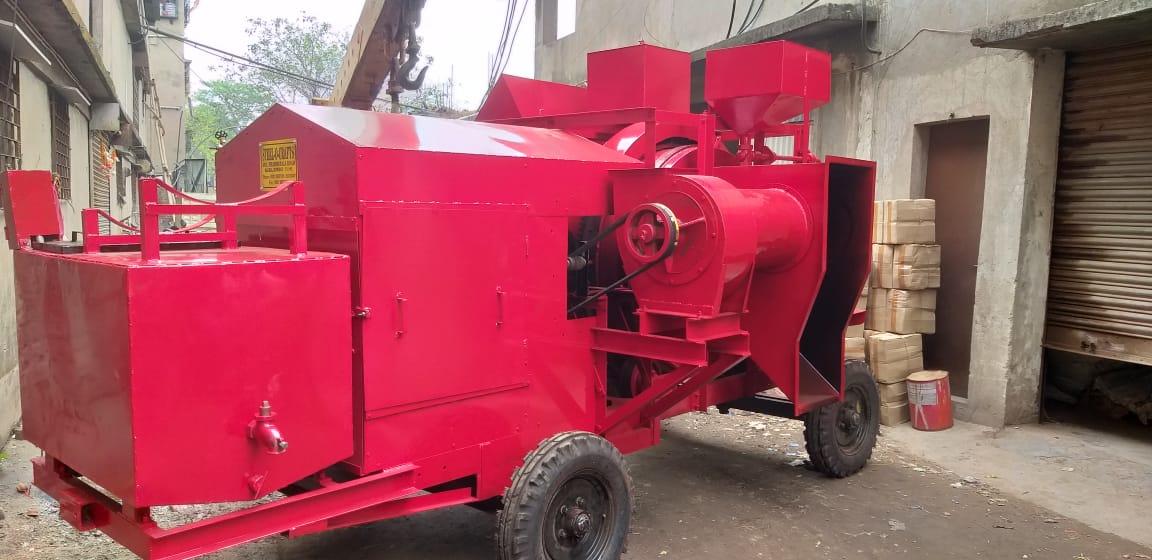

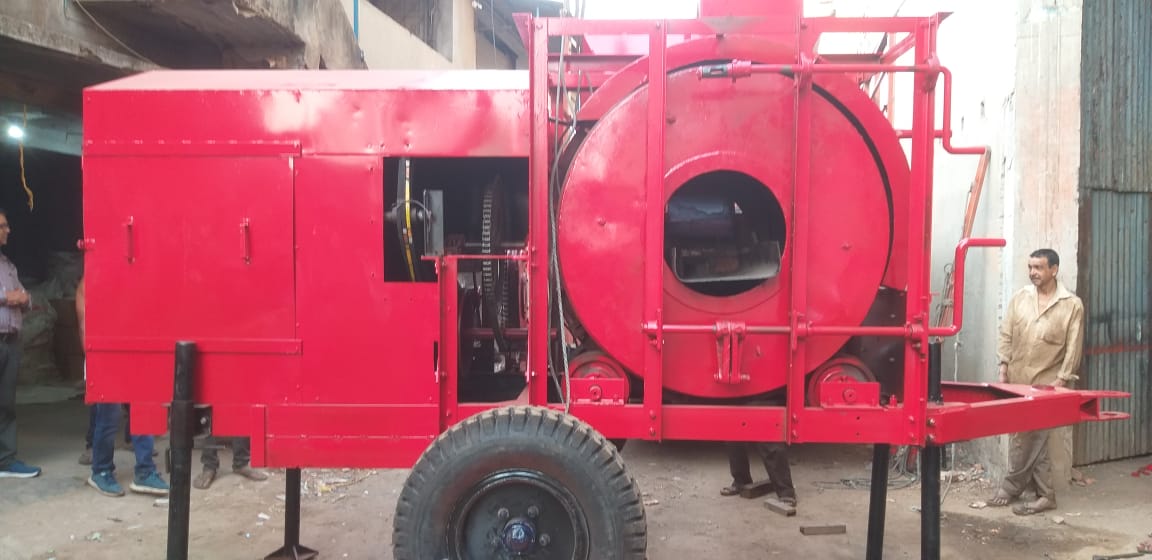

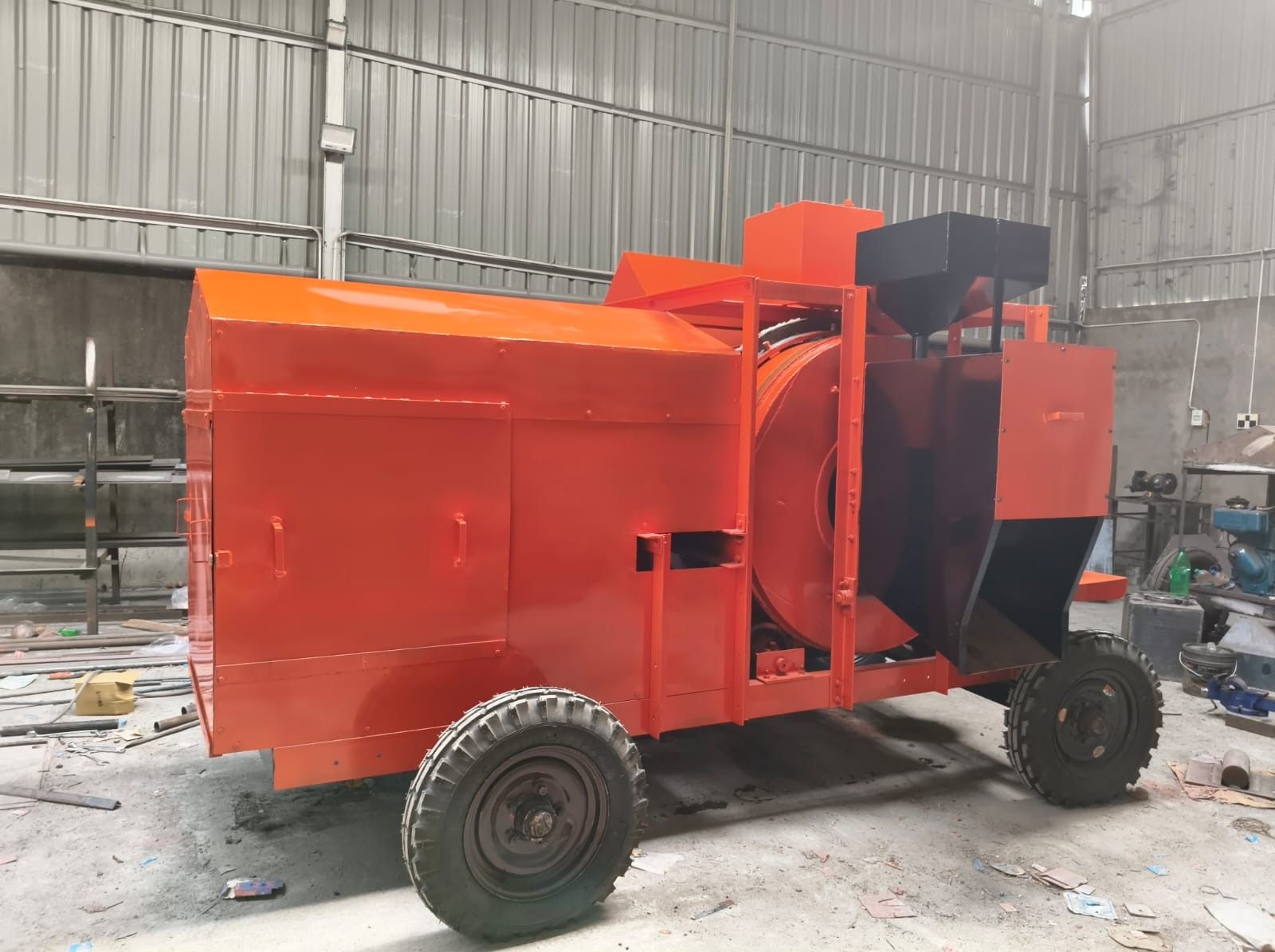

Heavy Type Portable Highway Combined Drying & Mixing Unit – 8/10 TPH Complete with head loading system and special gates inside feeder & mixing drum. Heavy-duty drying and mixing drum made from steel plate. Complete with ducting and discharge boxes. Powered by suitable diesel engine. Pinion with chain / pulley with V-belt transmission system. Four heavy-duty jacks provided for easy installation. Mounted on heavy-duty pneumatic wheels with drawbar.

Need More Information?

+91 9831537982
connect@structureindiamachinery.com
Product Overview

Heavy Type Portable Highway Combined Drying & Mixing Unit

Capacity: 8/10 TPH

Product Description

Heavy-duty portable highway combined drying and mixing unit with a production capacity of 8/10 TPH, complete with head loading arrangement and mounted on a robust mobile chassis for easy transportation and installation.

Technical Specifications

1. Head Loading System

  • Complete with head loading arrangement.
  • Special type gate provided inside the feeder and outside the mixing drum for efficient material control and operation.

2. Drying & Mixing Drum

  • Heavy-duty drying and mixing drum designed for continuous operation.
  • Drum fabricated from 5.2 mm thick steel plate for enhanced durability and long service life.

3. Ducting & Discharge System

  • Complete ducting arrangement.
  • Discharge boxes provided for smooth material flow and handling.

4. Power Unit

  • Powered by a suitable diesel engine for reliable field operation.

5. Transmission System

  • Pinion drive with 1” chain transmission system.
  • Alternatively available with pulley and V-belt transmission system.

6. Installation Arrangement

  • Four (4) heavy-duty jacks provided for quick and easy installation and leveling of the machine.

7. Mobility & Chassis

  • Entire unit mounted on four (4) numbers 600 x 16 heavy-duty pneumatic wheels.
  • Heavy-duty drawbar provided for towing and transportation.

8. Accessories

  • Supplied complete with standard tools and accessories.

Key Features

  • Portable and easy to transport.
  • Heavy-duty construction for highway and road construction applications.
  • Efficient drying and mixing performance.
  • Easy installation and maintenance.
  • Suitable for continuous site operations.

Applications

  • Road construction projects
  • Highway maintenance works
  • Asphalt and bituminous mixing applications
  • Rural and urban road development projects
Technical Specifications
Capacity8/12 TPH, 6/10 TPH
Drum Material5.2 mm plate
EngineSuitable diesel engine
TransmissionCentrifugal clutch, Pinion with 1" chain / Pulley with V Belt Mounting4 nos. heavy type pneumatic tyres and drawbar
Mounting4 nos. heavy type pneumatic tyres and drawbar
Key Features
Complete with a head loading system and a special type of gate inside.
Features an outside mixing drum and a heavy-type drying and mixing drum.
Equipped with a special type C/F burner with a heavy-type fire clay oven and firing arrangements
InIncludes an exhaust fan to separate unwanted compounds from stone, allowing for better mixing with less bitumen
Provided with 4 nos. jacks for easy machine installation, alongside ducting and discharge boxes.
Driven through a centrifugal clutch for uniform drum rotation, which helps the engine run free of load and increases its lifespan.
Ideal Applications

Utilized in road construction sites for the combined drying and mixing of road materials.
